The pygridgen API

class pygridgen.grid.Focus(*foci)

Bases: object

Return a container for a sequence of Focus objects.

The sequence is populated by using add_focus(), which defines a point (xo or yo), around which the grid is focused by a factor for the provided extent in the along the given axis. The region of focusing will be approximately Gaussian, and the resolution will be increased by approximately the value of factor.

Calls to the object return transformed coordinates:

xf, yf = foc(x, y)

where x and y must be within [0, 1], and are typically a uniform, normalized grid. The focused grid will be the result of applying each of the focus elements in the sequence they are added to the series.

Parameters

None

Examples

>>> foc = Focus()
>>> foc.add_focus(0.2, axis='x', factor=3.0, extent=0.20)
>>> foc.add_focus(0.6, axis='y', factor=5.0, extent=0.35)
>>> x, y = numpy.mgrid[0:1:3j, 0:1:3j]
>>> xf, yf = foc(x, y)
>>> print(xf)
[[0.         0.         0.        ]
 [0.36587759 0.36587759 0.36587759]
 [1.         1.         1.        ]]
>>> print(yf)
[[0.         0.62484147 1.        ]
 [0.         0.62484147 1.        ]
 [0.         0.62484147 1.        ]]

add_focus(pos, axis, factor=2.0, extent=0.1)

Add a single point of focus along an axis.

This adds a focused location to a grid and can be called multiple times in either the x- or y-direction.

Parameters

posfloat

Relative position within the grid of the focus. This must be in the range [0, 1]

axisstring (‘x’ or ‘y’)

Axis along which the grid will be focused.

factorfloat

Amount to focus grid. Creates cell sizes that are factor smaller (factor > 1) or larger (factor < 1) in the focused region.

extentfloat

Lateral extent of focused region.

to_spec()

Export to the defining properties of the focus to a JSON-like structure

classmethod from_spec(foci)

Create a new focus object from a JSON-like structure

class pygridgen.grid.CGrid(x, y)

Bases: object

Curvilinear Arakawa C-Grid.

The basis for the CGrid class are two arrays defining the verticies of the grid in Cartesian (for geographic coordinates, see CGrid_geo). An optional mask may be defined on the cell centers. Other Arakawa C-grid properties, such as the locations of the cell centers (rho-points), cell edges (u and v velocity points), cell widths (dx and dy) and other metrics (angle, dmde, and dndx) are all calculated internally from the vertex points.

Input vertex arrays may be either masked or regular numpy arrays. If masked arrays are used, the mask will be a combination of the specified mask (if given) and the masked locations.

Parameters

x, ynumpy.ndarray

Arrays of the x/y vertex/node positions

Examples

>>> import numpy as np
>>> import pygridgen
>>> x, y = numpy.mgrid[0.0:7.0, 0.0:8.0]
>>> x = numpy.ma.masked_where((x < 3) & (y < 3), x)
>>> y = numpy.ma.MaskedArray(y, x.mask)
>>> grd = pygridgen.grid.CGrid(x, y)
>>> print(grd.x_rho)
[[-- -- -- 0.5 0.5 0.5 0.5]
 [-- -- -- 1.5 1.5 1.5 1.5]
 [-- -- -- 2.5 2.5 2.5 2.5]
 [3.5 3.5 3.5 3.5 3.5 3.5 3.5]
 [4.5 4.5 4.5 4.5 4.5 4.5 4.5]
 [5.5 5.5 5.5 5.5 5.5 5.5 5.5]]
>>> print(grd.mask)
[[0. 0. 0. 1. 1. 1. 1.]
 [0. 0. 0. 1. 1. 1. 1.]
 [0. 0. 0. 1. 1. 1. 1.]
 [1. 1. 1. 1. 1. 1. 1.]
 [1. 1. 1. 1. 1. 1. 1.]
 [1. 1. 1. 1. 1. 1. 1.]]

property x

x-coordinate of the grid vertices (a.k.a. nodes)

property y

y-coordinate of the grid vertices (a.k.a. nodes)

property mask

Mask for the cells (same as mask_rho)

property x_rho

x-coordinates of cell centroids

property y_rho

y-coordinates of cell centroids

property mask_rho

Returns the mask for the cells

property x_u

x-coordinate of u-point (leading edge in i-direction?)

property y_u

y-coordinate of u-point (leading edge in i-direction?)

property mask_u

Mask for the u-points

property x_v

x-coordinate of y-point (leading edge in j-direction?)

property y_v

y-coordinate of y-point (leading edge in j-direction?)

property mask_v

mask for the v-points

property x_psi

x-coordinate of the anchor node for each cell? (upper left?)

property y_psi

y-coordinate of the anchor node for each cell? (upper left?)

property mask_psi

mask for the psi-points

property dx

dimension of cell in x-direction?

property pm

property dy

dimension of cell in y-direction?

property pn

property dndx

property dmde

property angle

property angle_rho

property orthogonality

Calculate orthogonality error in radians

calculate_orthogonality(**kwds)

calculate_orthogonality is deprecated, use orthogonality instead!

Should deprecate in favor of property orthogonality

mask_polygon(polyverts, mask_value=False)

Mask Cartesian points contained within the polygon defined by polyverts.

A cell is masked if the cell center (x_rho, y_rho) is within the polygon. Other sub-masks (mask_u, mask_v, and mask_psi) are updated automatically.

A mask_value=False may be specified to alter the value of the mask set within the polygon (e.g., mask_value=True for water points)

Parameters

polyvertssequence of 2-tuples or numpy array (N, x)

The x/y coordinates of the polygon used to mask the grid.

mask_valuebool, optional (default = False)

The value of the mask to be set for cells whose centroids are inside the polygon.

class pygridgen.grid.CGrid_geo(lon, lat, proj, use_gcdist=True, ellipse='WGS84')

Bases: pygridgen.grid.CGrid

Curvilinear Arakawa C-grid defined in geographic coordinates.

For a geographic grid, the cell widths are determined by the great circle distances. Angles, however, are defined using the projected coordinates, so a projection that conserves angles must be used. This means typically either Mercator (projection=’merc’) or Lambert Conformal Conic (projection=’lcc’).

Parameters

lon, latnumpy.ndarrays

Array of grid vertex/node positions in decimal degrees (i.e., longitude and latitude).

projpyproj.Proj

A projection object that can translate lon and lat into Cartesian coordinates.

use_gcdistbool, optional (default = True)

Toggles the use of great circle distances when computing cell dimensions.

ellipsestr, optional (default = ‘WGS84’)

The ellipsoid reference for lon and lat,

property dx

dimension of cell in x-direction?

property dy

dimension of cell in y-direction?

property lon

Shorthand for lon_vert

property lat

Shorthand for lat_vert

mask_polygon_geo(lonlat_verts, mask_value=0.0)

class pygridgen.grid.Gridgen(xbry, ybry, beta, shape, ul_idx=0, focus=None, proj=None, nnodes=14, precision=1e-12, nppe=3, newton=True, thin=True, checksimplepoly=True, verbose=False, autogen=True)

Bases: pygridgen.grid.CGrid

Main class for curvilinear-orthogonal grid generation.

Parameters

xbry, ybryarray-like

One dimensional sequences of the x- and y-coordinates of the grid boundary.

betaarray-like

Turning values of each coordinate defined by xbry and ybry. The sum of all beta values must equal 4. If you think about this like the right-hand rule of basic physics, positive turning points (+1) face up and work to close the boundary polygon. Negative turning points (-1) open it up (e.g., to define a side channel or other complexity). In between these points, neutral points should be assigned a value of 0.

shapetwo-tuple of ints (ny, nx)

The number of cells that would cover the full spatial extent of the grid in standard C-order (i.e., rows, then columns).

ul_idxoptional int (default = 0)

The index of the what should be considered the upper left corner of the grid boundary in the xbry, ybry, and beta inputs. This is actually more arbitrary than it sounds. Put it some place convenient for you, and the algorithm will conceptually rotate the boundary to place this point in the upper left corner. Keep that in mind when specifying the shape of the grid.

focusFocus, optional

A focus object to tighten/loosen the grid in certain sections.

projpyproj.Proj, optional

A pyproj projection to be used to convert lat/lon coordinates to a projected (Cartesian) coordinate system (e.g., UTM, state plane).

nnodesint, optional (default = 14)

The number of nodes used in grid generation. This affects the precision and computation time. A rule of thumb is that this should be equal to or slightly larger than -log10(precision).

precisionfloat, optional (default = 1.0e-12)

The precision with which the grid is generated. The default value is good for lat/lon coordinate (i.e., smaller magnitudes of boundary coordinates). You can relax this to e.g., 1e-3 when working in state plane or UTM grids and you’ll typically get better performance.

nppeint, optional (default = 3)

The number of points per internal edge. Lower values will coarsen the image.

newtonbool, optional (default = True)

Toggles the use of Gauss-Newton solver with Broyden update to determine the sigma values of the grid domains. If False simple iterations will be used instead.

thinbool, optional (default = True)

Toggle to True when the (some portion of) the grid is generally narrow in one dimension compared to another.

checksimplepolybool, optional (default = True)

Toggles a check to confirm that the boundary inputs form a valid geometry.

verbosebool, optional (default = True)

Toggles the printing of console statements to track the progress of the grid generation.

autogenbool, optional (default = True)

Toggles the automatic generation of the grid. Set to False if you want to delay calling the generate_grid method.

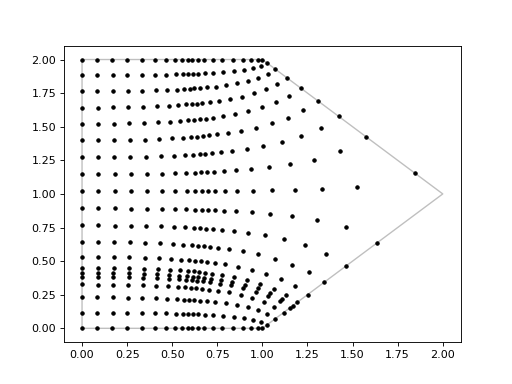

Examples

import matplotlib.pyplot as plt
import pygridgen
# define the boundary (pentagon)
x = [0, 1, 2, 1, 0, 0]
y = [0, 0, 1, 2, 2, 0]
beta = [1, 1, 0, 1, 1]
# define the focus
focus = pygridgen.grid.Focus()
focus.add_focus(0.5, 'x', factor=3, extent=0.2)
focus.add_focus(0.75, 'y', factor=5, extent=0.1)
# create the grid
grid = pygridgen.Gridgen(x, y, beta, shape=(20, 20), focus=focus)
# plot the grid
fig, ax = plt.subplots()
ax.plot(x, y, 'k-', lw=1.25, zorder=0, alpha=0.25)
ax.plot(grid.x, grid.y, 'k.', zorder=5)
plt.show()

(Source code, png, hires.png, pdf)

property sigmas

Some weird intermediate value that takes a long time to the C code to compute with complex boundaries.

property nsigmas

The number of sigma values.

property nx

Number of nodes in the x-direction (columns).

property ny

Number of nodes in the y-direction (rows).

property shape

The shape of the overall grid (row, columns).

property focus

The Focus object associated with the grid.

generate_grid()

The business end of this whole thing. Collects all of the inputs, passes them to the gridgen-c code, and returns arrays of node coordinates. Unless autogen was set to False, this happens when the object is instantiated.

Parameters

None

to_spec()

Export the grid-defining parameters into a JSON-like structure

classmethod from_spec(attributes)

Create a new grid from a JSON-like data structure

pygridgen.grid.rho_to_vert(xr, yr, pm, pn, ang)

Possibly converts centroids to nodes

pygridgen.grid.uvp_masks(rmask)

return u-, v-, and psi-masks based on input rho-mask

Parameters

rmaskndarray

mask at CGrid rho-points

Returns

(umask, vmask, pmask)ndarrays

masks at u-, v-, and psi-points
